BPDC series is a valve-regulated AGM technology-based battery specifically designed for high-cycling applications. With a higher tin content, a special thick plate structure, and a unique paste formulation it provides a much longer cycle life compared to general-purpose AGM batteries in cyclic applications such as mobility / electric vehicles, renewable energy, recreational vehicles, and marine applications.
Main Features:
1. Longer life in deep cycle application:30% longer life than regular AGM lead acid battery
2. Superior deep cycle design: higher stability for deep cycle use
3. High power Density
4. Use thick plates and Super-C additives lead plates: Deep discharge recovery capability.
5. Excellent recovery from deep applications
6. Excellent equalization in discharge
Applications:
1. Electric powered vehicles
2. Wheelchairs
3. Medical equipments
4. Solar and wind systems
5. Golf cart and buggies
6. Power tools
7. UPS system
Specifications
Model | Nominal | Capacity | Weight | Dimensions(mm/in) | Terminal |
Voltage | (AH) | ±2% | Length | Width | Height | Total Height |
(V) |
| Kg | Lbs | mm | in | mm | in | mm | in | mm | in | Type |
BPDC24-12 | 12 | 24 | 8 | 17.6 | 174 | 6.86 | 166 | 6.54 | 125 | 4.93 | 125 | 4.93 | T3/T8 |
BPDC28-12 | 12 | 28 | 8.2 | 18.1 | 166 | 6.54 | 125 | 4.93 | 175 | 6.9 | 175 | 6.9 | T6/T8 |
BPDC33-12 | 12 | 33 | 10.5 | 23.2 | 195 | 7.68 | 130 | 5.12 | 153 | 6.03 | 164 | 6.46 | T7/T9 |
BPDC40-12 | 12 | 40 | 12.5 | 27.6 | 196 | 7.72 | 166 | 6.54 | 170 | 6.7 | 170 | 6.7 | T7/T9 |
BPDC55-12 | 12 | 55 | 17.5 | 38.6 | 229 | 9.02 | 138 | 5.44 | 208 | 8.2 | 211 | 8.31 | T5/T15 |

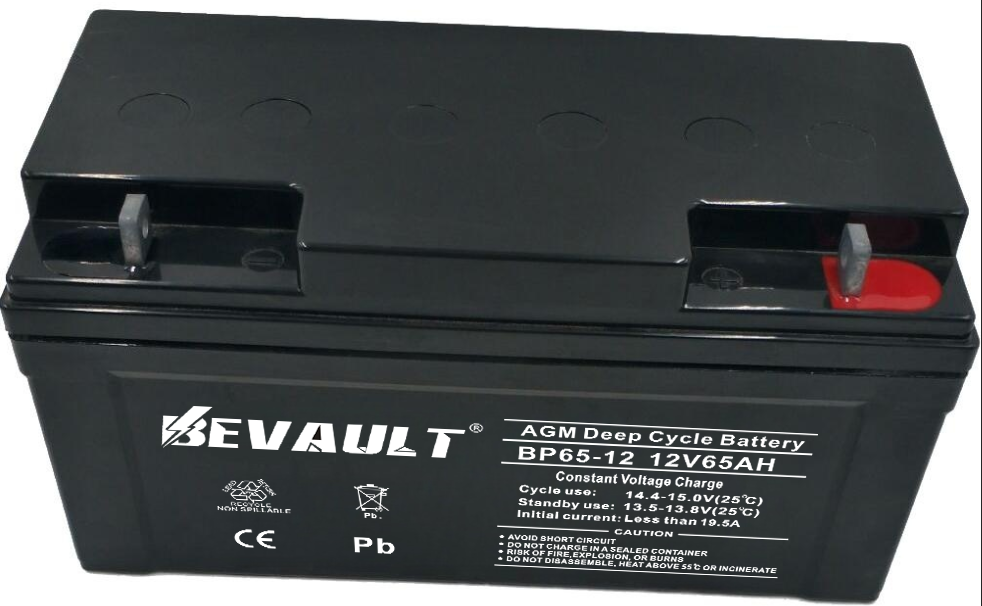

BPDC65-12 | 12 | 65 | 20.5 | 45.2 | 350 | 13.8 | 169 | 6.66 | 179 | 7.05 | 179 | 7.05 | T5/T15 |
BPDC70-12 | 12 | 70 | 21.7 | 47.8 | 260 | 10.2 | 168 | 6.62 | 211 | 8.31 | 214 | 8.43 | T5/T15 |
BPDC80-12 | 12 | 80 | 23 | 50.7 | 260 | 10.2 | 168 | 6.62 | 211 | 8.31 | 214 | 8.43 | T5/T15 |
BPDC90-12 | 12 | 90 | 26.3 | 58 | 307 | 12.096 | 168 | 6.62 | 211 | 8.31 | 214 | 8.4316 | T5/T15 |
BPDC100-12 | 12 | 100 | 29.6 | 65.3 | 330 | 13 | 173 | 6.82 | 217 | 8.55 | 220 | 8.67 | T5/T14 |

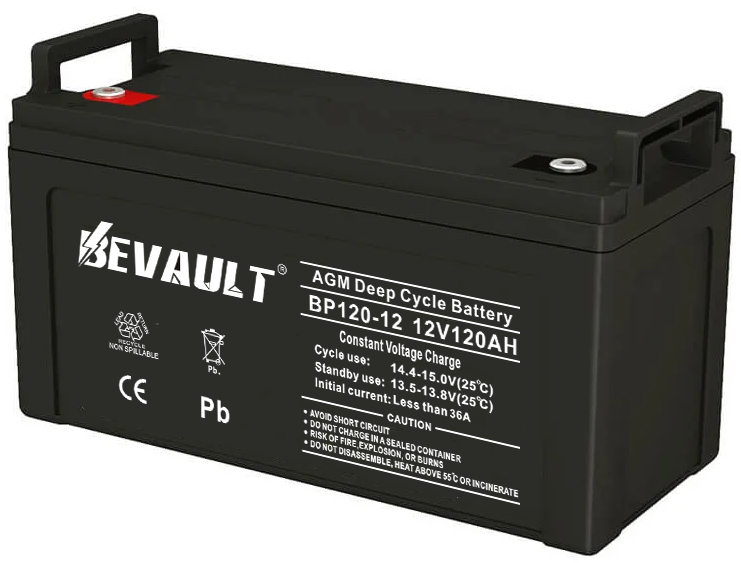

BPDC120-12 | 12 | 120 | 35.6 | 78.5 | 406 | 16 | 173 | 6.82 | 208 | 8.2 | 238 | 9.38 | T5/T14 |
BPDC150-12 | 12 | 150 | 43.6 | 96.1 | 484 | 19.1 | 170 | 6.7 | 240 | 9.46 | 240 | 9.46 | T5/T14 |
BPDC180-12 | 12 | 180 | 56.5 | 124 | 522 | 20.6 | 238 | 9.38 | 218 | 8.59 | 221 | 8.71 | T5/T10 |
BPDC200-12 | 12 | 200 | 59.5 | 131 | 522 | 20.6 | 238 | 9.38 | 218 | 8.59 | 221 | 8.71 | T5/T10 |
BPDC230-12 | 12 | 230 | 66 | 145 | 521 | 20.527 | 269 | 10.6 | 203 | 8 | 206 | 8.12 | T5/T10 |

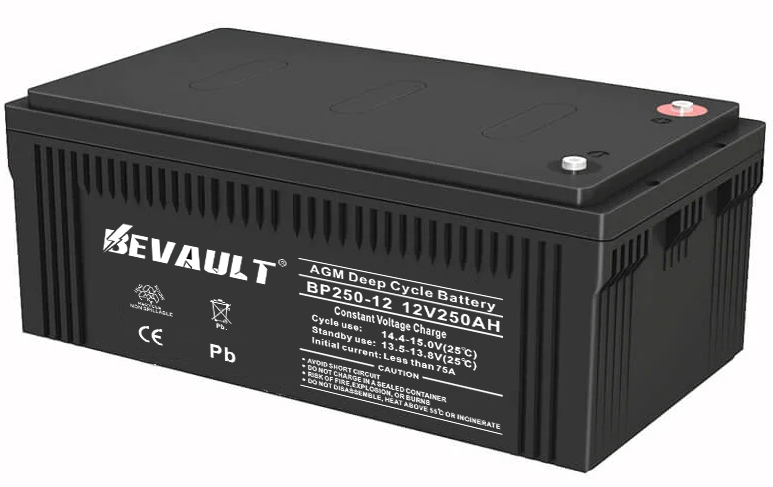

BPDC250-12 | 12 | 250 | 71.5 | 157 | 520 | 20.5 | 267 | 10.5 | 220 | 8.67 | 223 | 8.79 | T5/T10 |
