Main Features:
1.High purity raw material and low self-discharge: lower than 3% of rated capacity per month under normal operating temperature
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Oxygen recombination technology: maintenance-free operation
5.Sealed construction and leakproof
6.Safety valve regulated system
7.Good quality AGM separator and unique corrosion resistance grid alloy: prevent micro short circuits and extend cycle life
8.Wide operating temperature range
Applications:
1.Telephone switchboards, electric equipments, medical equipments, medical instruments and meters |
2.Computers and uninterrupted power source (UPS) |
3.Power transmission and transformer station, switch control and accident lighting |
4.Fire fighting, safety device and alarm monitoring |
5.Aviation, spaceflight and power storage |
6.Automatic office system |
7.Radio communication system |
8.Emergency lighting and car and ship starting system |
9.Portable electric appliances and mining system |
10.Traffic and navigation signal lamp |
| Model | Nominal | Capacity | Weight | Dimensions(mm/in) | Terminal |
| Voltage | (AH) | ±2% | Length | Width | Height | Total Height |
| (V) |
| Kg | Lbs | mm | in | mm | in | mm | in | mm | in | Type |
| BP4-4 | 4 | 4 | 0.44 | 0.97 | 47 | 1.85 | 47 | 1.85 | 101 | 3.98 | 106 | 4.18 | T1 |
| BP4.5-4 | 4 | 4.5 | 0.47 | 1.04 |
| BP1.2-6 | 6 | 1.2 | 0.28 | 0.62 | 97 | 3.82 | 24 | 0.95 | 53 | 2.05 | 58 | 2.29 | T1 |
| BP2.8-6 | 6 | 2.8 | 0.55 | 1.21 | 66 | 2.6 | 33 | 1.3 | 99 | 3.9 | 104 | 4.1 | T1 |
| BP3.2-6 | 6 | 3.2 | 0.64 | 1.41 | 134 | 5.28 | 35 | 1.38 | 61 | 2.4 | 66 | 2.6 | T1 |
| BP4-6 | 6 | 4 | 0.68 | 1.5 | 70 | 2.76 | 47 | 1.85 | 100 | 3.94 | 105 | 4.14 | T1 |
| BP4,5-6 | 6 | 4.5 | 0.72 | 1.59 |
| BP5-6 | 6 | 5 | 0.8 | 1.76 |
| BP7-6 | 6 | 7 | 1.08 | 2.38 | 151 | 5.95 | 35 | 1.38 | 95 | 3.74 | 100 | 3.94 | T1/T2 |
| BP10-6 | 6 | 10 | 1.6 | 3.53 | 151 | 5.95 | 50 | 1.97 | 95 | 3.74 | 100 | 3.94 | T1/T2 |
| BP12-6 | 6 | 12 | 1.72 | 3.79 |
| BP0.8-12 | 12 | 0.8 | 0.32 | 0.71 | 96 | 3.78 | 25 | 0.99 | 62 | 2.44 | 62 | 2.44 | Plug |
| BP1.2-12 | 12 | 1.2 | 0.51 | 1.12 | 97 | 3.82 | 43 | 1.69 | 52 | 2.05 | 57 | 2.25 | T1 |
| BP2.3-12 | 12 | 2.3 | 0.9 | 1.98 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 66 | 2.6 | T1 |
| BP2.6-12 | 12 | 2.6 | 0.8 | 1.76 | 70 | 2.76 | 47 | 1.85 | 98 | 3.86 | 103 | 4.06 | T1 |
| BP3.2-12 | 12 | 3.2 | 1.2 | 2.65 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 66 | 2.6 | T1 |
| BP3.5-12 | 12 | 3.5 | 1.33 | 2.93 |
| BP4-12 | 12 | 4 | 1.37 | 3.02 | 90 | 3.55 | 70 | 2.76 | 101 | 3.98 | 106 | 4.18 | T1/T2 |

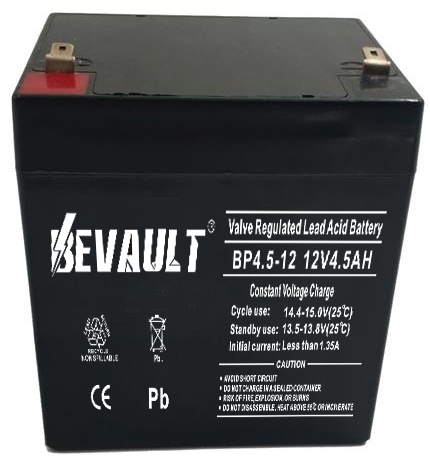

| BP4.5-12 | 12 | 4.5 | 1.42 | 3.13 |
| BP5-12 | 12 | 5 | 1.54 | 3.4 |
| BP6.5-12 | 12 | 6.5 | 2 | 4.41 | 151 | 5.95 | 65 | 2.56 | 95 | 3.74 | 100 | 3.94 | T1/T2 |

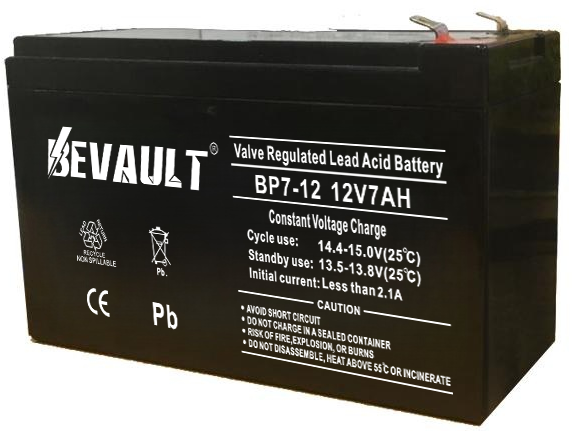

| BP7-12 | 12 | 7 | 2.04 | 4.49 |
| BP7.5-12 | 12 | 7.5 | 2.16 | 4.76 |
| BP8-12 | 12 | 8 | 2.23 | 4.92 |
| BP9-12 | 12 | 9 | 2.46 | 5.42 |
| BP10-12H | 12 | 10 | 2.65 | 5.84 | 151 | 5.95 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T1/T2 |
| BP10-12 | 12 | 10 | 3.15 | 6.95 | 151 | 5.95 | 98 | 3,86 | 95 | 3.74 | 100 | 3.94 | T1/T2 |
| BP12-12 | 12 | 12 | 3.35 | 7.39 |
| BP14-12 | 12 | 14 | 3.76 | 8.29 |

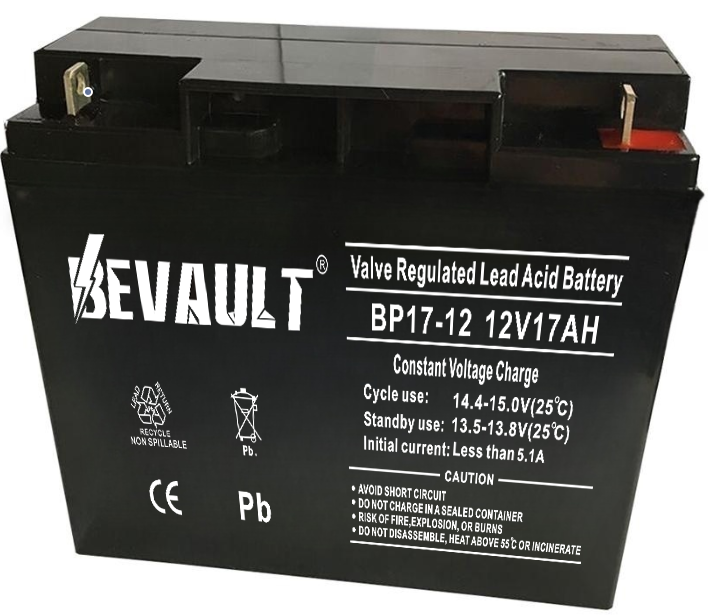

| BP17-12 | 12 | 17 | 4.95 | 10.9 | 181 | 7.13 | 77 | 3.03 | 167 | 6.58 | 167 | 6.58 | T3/T8 |
| BP18-12 | 12 | 18 | 5.18 | 11.4 |

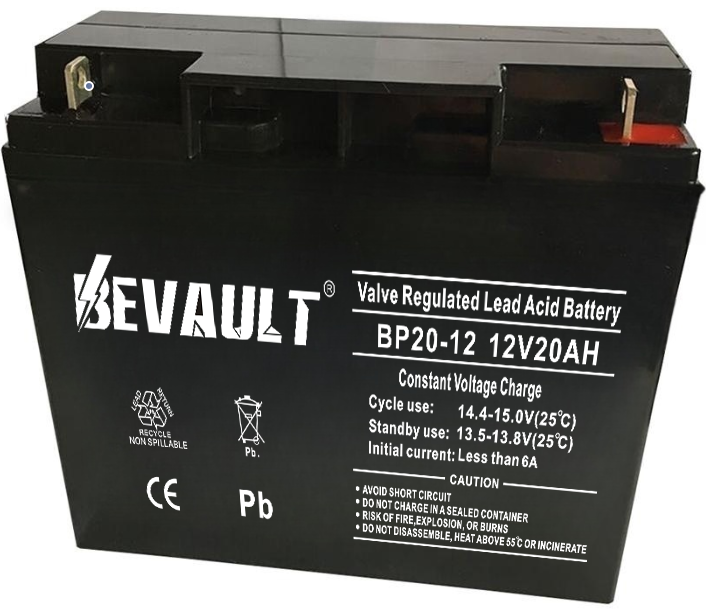

| BP20-12 | 12 | 20 | 5.48 | 12.1 |
| BP24-12 | 12 | 24 | 8 | 17.6 | 174 | 6.86 | 166 | 6.54 | 125 | 4.93 | 125 | 4.93 | T3/T8 |
| BP28-12 | 12 | 28 | 8.2 | 18.1 | 166 | 6.54 | 125 | 4.93 | 175 | 6.9 | 175 | 6.9 | T6/T8 |
| BP33-12 | 12 | 33 | 10.5 | 23.2 | 195 | 7.68 | 130 | 5.12 | 153 | 6.03 | 164 | 6.46 | T7/T9 |
| BP40-12 | 12 | 40 | 12.5 | 27.6 | 196 | 7.72 | 166 | 6.54 | 170 | 6.7 | 170 | 6.7 | T7/T9 |

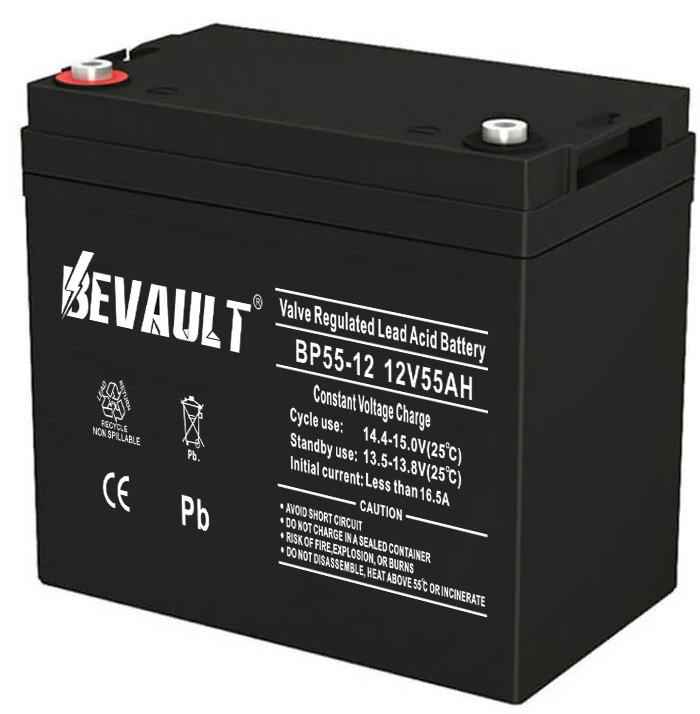

| BP55-12 | 12 | 55 | 17.5 | 38.6 | 229 | 9.02 | 138 | 5.44 | 208 | 8.2 | 211 | 8.31 | T5/T15 |
| BP65-12 | 12 | 65 | 20.5 | 45.2 | 350 | 13.8 | 169 | 6.66 | 179 | 7.05 | 179 | 7.05 | T5/T15 |
| BP70-12 | 12 | 70 | 21.7 | 47.8 | 260 | 10.2 | 168 | 6.62 | 211 | 8.31 | 214 | 8.43 | T5/T15 |
| BP80-12 | 12 | 80 | 23 | 50.7 | 260 | 10.2 | 168 | 6.62 | 211 | 8.31 | 214 | 8.43 | T5/T15 |
| BP90-12 | 12 | 90 | 26.3 | 58 | 307 | 12.096 | 168 | 6.62 | 211 | 8.31 | 214 | 8.4316 | T5/T15 |
| BP100-12 | 12 | 100 | 29.6 | 65.3 | 330 | 13 | 173 | 6.82 | 217 | 8.55 | 220 | 8.67 | T5/T14 |
| BP120-12 | 12 | 120 | 35.6 | 78.5 | 406 | 16 | 173 | 6.82 | 208 | 8.2 | 238 | 9.38 | T5/T14 |
| BP150-12 | 12 | 150 | 43.6 | 96.1 | 484 | 19.1 | 170 | 6.7 | 240 | 9.46 | 240 | 9.46 | T5/T14 |
| BP180-12 | 12 | 180 | 56.5 | 124 | 522 | 20.6 | 238 | 9.38 | 218 | 8.59 | 221 | 8.71 | T5/T10 |
| BP200-12 | 12 | 200 | 59.5 | 131 | 522 | 20.6 | 238 | 9.38 | 218 | 8.59 | 221 | 8.71 | T5/T10 |
| BP230-12 | 12 | 230 | 66 | 145 | 521 | 20.527 | 269 | 10.6 | 203 | 8 | 206 | 8.12 | T5/T10 |
| BP250-12 | 12 | 250 | 71.5 | 157 | 520 | 20.5 | 267 | 10.5 | 220 | 8.67 | 223 | 8.79 | T5/T10 |
