Main Features:
1. This Energy storage battery utilizes gel electrolyte
technology. The uniformly distributed gel electrolyte is made by mixing sulfuric acid with silica fume.
2. The electrolyte can hold the battery plates securely in an immobile gel.
3.Radial grid design offers this power storage device excellent discharge performance
4.Due to 4BS lead paste technology, our deep cycle gel battery provides long lasting service life.
5. Employing unique grid alloy, special gel formulation and distinct positive and negative lead paste ratio, the maintenance free battery boasts outstanding deep cycle service performance and over discharge recovery ability.
6. Completely manufactured from high purity raw materials, has extremely low self discharge.
7. Gas recombination technology ensures excellent seal reaction efficiency, thus delivering no pollution such as acid mist to the environment.
8. The gel VRLA battery boasts reliable sealing technology which enables security seal performance.
Applications:1.
1. Electric powered vehicles
2. Wheel chairs
3. Medical equipments
4. Solar and wind systems
5. Golf cart and buggies
6. Power tools
7. UPS system
Model | Nominal | Capacity | Weight | Dimensions(mm/in) | Terminal |
Voltage | (AH) | ±2% | Length | Width | Height | Total Height |
(V) |
| Kg | Lbs | mm | in | mm | in | mm | in | mm | in | Type |

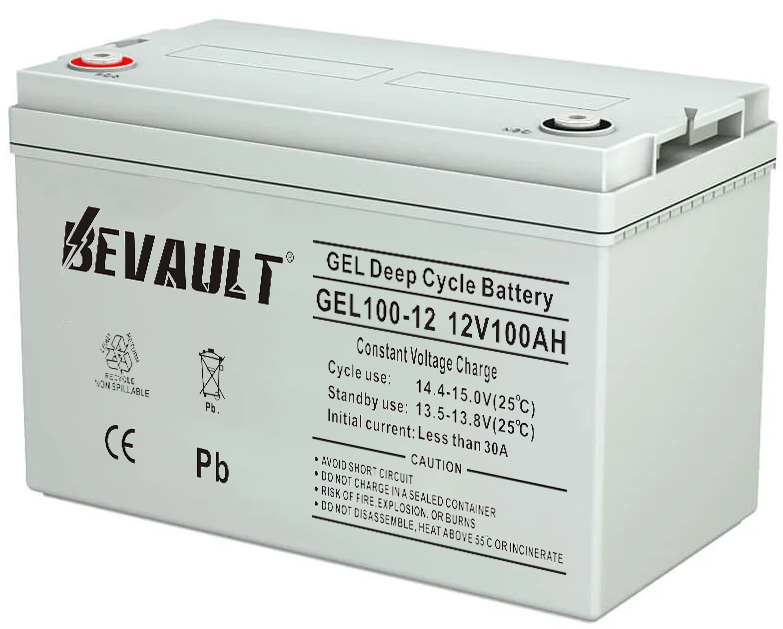

BPGEL100-12 | 12 | 100 | 29.6 | 65.3 | 330 | 13 | 173 | 6.82 | 217 | 8.55 | 220 | 8.67 | T5/T14 |

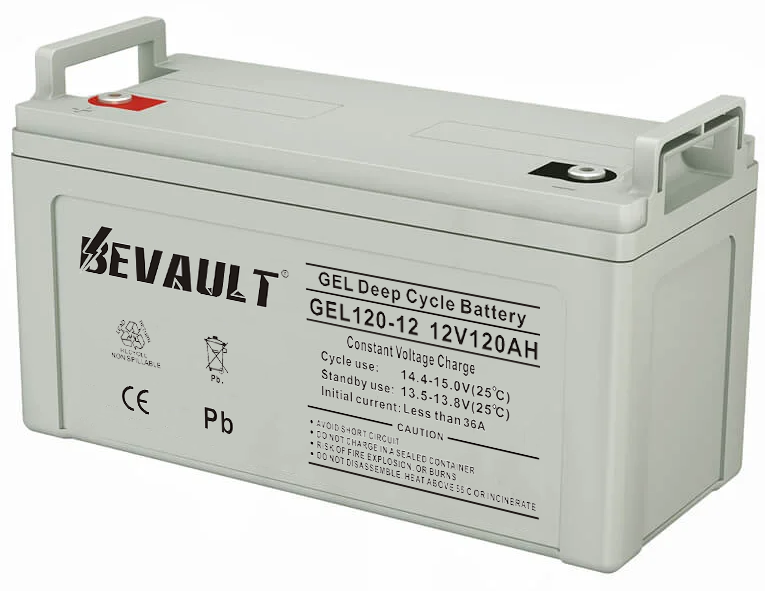

BPGEL120-12 | 12 | 120 | 35.6 | 78.5 | 406 | 16 | 173 | 6.82 | 208 | 8.2 | 238 | 9.38 | T5/T14 |

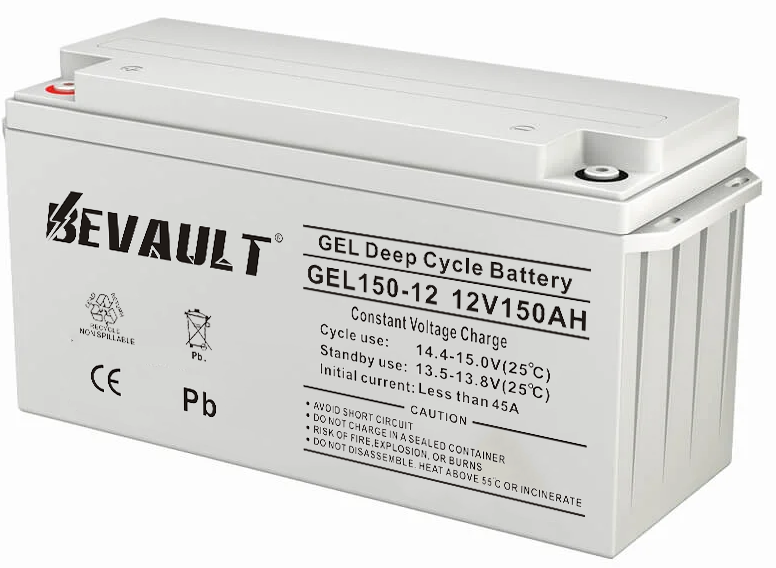

BPGEL150-12 | 12 | 150 | 43.6 | 96.1 | 484 | 19.1 | 170 | 6.7 | 240 | 9.46 | 240 | 9.46 | T5/T14 |
BPGEL180-12 | 12 | 180 | 56.5 | 124 | 522 | 20.6 | 238 | 9.38 | 218 | 8.59 | 221 | 8.71 | T5/T10 |

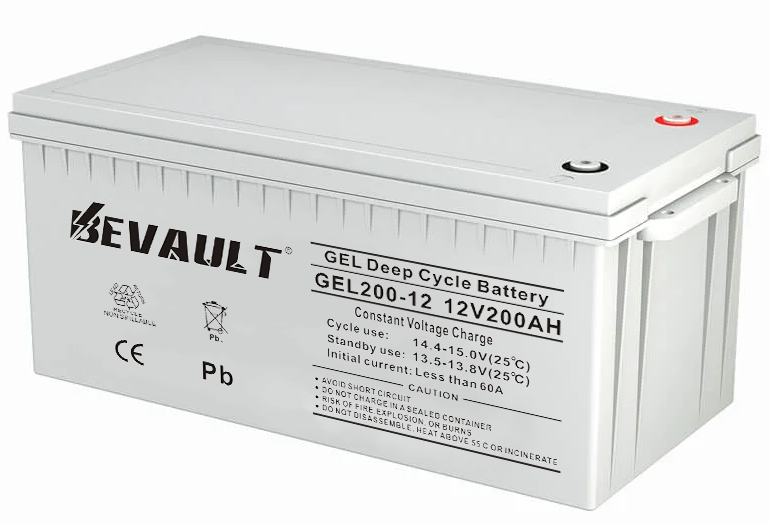

BPGEL200-12 | 12 | 200 | 59.5 | 131 | 522 | 20.6 | 238 | 9.38 | 218 | 8.59 | 221 | 8.71 | T5/T10 |
BPGEL230-12 | 12 | 230 | 66 | 145 | 521 | 20.527 | 269 | 10.6 | 203 | 8 | 206 | 8.12 | T5/T10 |

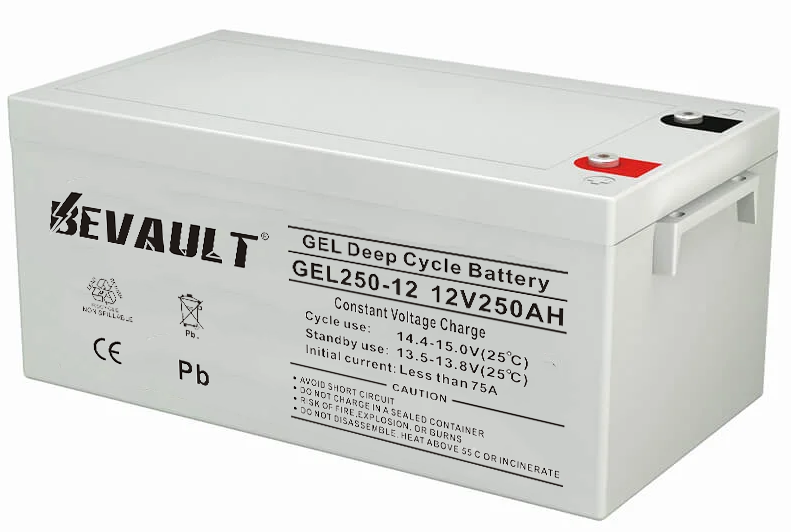

BPGEL250-12 | 12 | 250 | 71.5 | 157 | 520 | 20.5 | 267 | 10.5 | 220 | 8.67 | 223 | 8.79 | T5/T10 |
