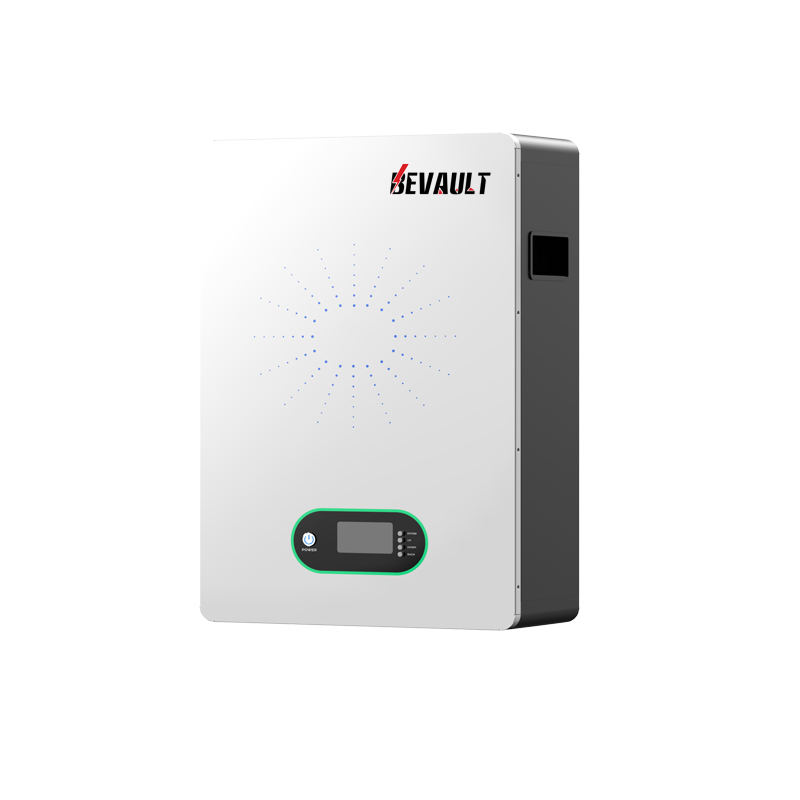

Powerwall Battery
General Features
1. Built-in BMS for real-time monitoring
2. Grade-A cell, 6000+cycles@80% DOD
3. Multiple batteries in parallel
4. High consistency, low inner resistance
5. Optimal design for easy installation and
less space
6. wide compatibility with main brand inverter
Specifications
Item | General Parameter |
Battery Model | BPW512100 | BPW512200 |
Energy | 5120Wh | 10240Wh |
Rated Capacity | 100Ah | 200Ah |
Nominal Voltage | 51.2V |
Cut-Off Voltage | 47V |
Charging Voltage | 54.5V |
Standard Charge | CC@0.2C to 54.5V,then CV till current to 0.05C |
Max. Continuous Charge Current | 100A | 200A |
Max. Continuous Discharge Current | 100A | 200A |
Pulse Discharge Current 150A | 250A |
Communication CAN / RS232 /RS485 |
Operation Temperature | Charge: 0~55℃ |
Discharge:-20~65℃ |
Storage Temperature | 0~45℃ |
Cycle Life | ≥6000 Cycles |
Parallel Connection | Yes |
IP Grade | IP67 |
Certificates | UN38.3 / MSDS /CE / UKCA |
Dimension(L*W*H) | 750*450*163mm | 880*520*163mm |
Net Weight | 55kg | 94kg |
